Roller Shutter Safety Sensors and Accessories: What’s Required for Compliance in SA
In South Australia, every electric roller shutter must have obstacle detection and force-limiting sensors compliant with AS/NZS 60335.2.103.
A licensed electrician must install and sign off on these sensors. Many older shutters across Adelaide predate this requirement, leaving homeowners and landlords with compliance gaps they don’t know about.
This guide sets out exactly which sensors and accessories are required, who’s responsible for compliance, and how to retrofit an older shutter without replacing it entirely.
Key Takeaways
- Electric roller shutters in South Australia must have obstacle detection and force-limiting sensors compliant with AS/NZS 60335.2.103.
- Installation and sign-off must be carried out by a licensed electrician — DIY motorised shutter installs are not compliant.
- Manual roller shutters have lighter requirements but still need compliant cord safety features to prevent entanglement.
- Older, non-compliant shutters can usually be retrofitted with safety sensors rather than fully replaced.
- Responsibility for compliance shifts depending on context — new installs, retrofits, and rental properties each carry different obligations for owners versus installers.
What Safety Sensors Are Required on Roller Shutters in South Australia?
Electric roller shutters need two types of safety sensors. The first detects obstacles in the shutter’s path. The second limits the force the motor can apply. Together, these sensors stop the shutter from closing on a person, pet, or object. Manual roller shutters don’t need motor-based sensors. But they still need compliant cord safety features. We’ll cover those separately below.
What Is AS/NZS 60335.2.103 and Why Does It Matter?
AS/NZS 60335.2.103 is the Australian safety standard for electric shutters, gates, and doors. It sets the rules for entrapment prevention. It also sets rules for force limits and auto-reversal behaviour. The standard exists because motorised shutters can cause serious injury if they trap a limb or object. Compliance isn’t a bonus feature. It’s the baseline requirement for any legal installation.
Which Safety Sensors Do Compliant Roller Shutters Need?
Three sensor types make up a compliant system.
Obstacle Detection Sensors (Safety Edges)
A safety edge sits along the bottom of the shutter curtain. It detects contact with an object and stops the shutter immediately. Some models also reverse the shutter automatically after contact.

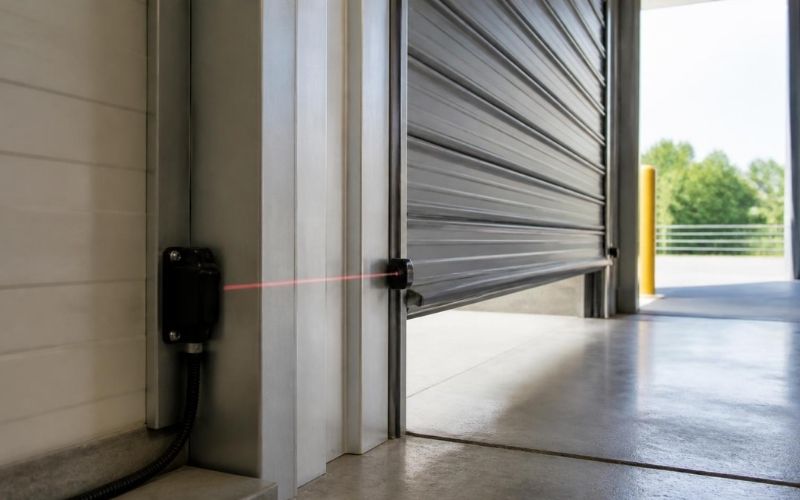

Photoelectric Sensors
Photoelectric sensors use an infrared beam across the shutter’s path. If something breaks the beam, the shutter stops before it makes contact. These sensors work well for openings with high foot traffic, like garage entries.
Motor Overload and Force-Limiting Cut-Offs
This sensor monitors the force the motor applies as it closes. If resistance exceeds a safe threshold, the motor cuts power. This prevents crushing injuries even without a physical safety edge.
| Sensor Type | Function | Typically Required For |
|---|---|---|
| Safety edge | Detects contact, stops or reverses shutter | All electric shutters |
| Photoelectric sensor | Detects obstruction before contact | High-traffic openings, commercial sites |
| Force-limiting cut-off | Limits motor force on resistance | All electric shutters |
Are Roller Shutter Safety Sensors Mandatory in SA, or Just Recommended?
Safety sensors are mandatory for every electric roller shutter in South Australia. This applies to new installations and upgrades alike. A licensed electrician must install the wiring and certify the work. This isn’t just best practice, SafeWork SA treats non-compliant electrical work as a serious safety breach. If you’re comparing options for security roller shutters Adelaide-wide, always confirm the supplier builds compliance into every quote, not as an optional extra.
What Happens If a Roller Shutter Doesn’t Have Required Safety Sensors?
A non-compliant shutter creates real injury risk, especially for children and pets. It also creates liability risk. If a non-compliant shutter injures someone, the property owner may face legal and insurance consequences. Landlords carry extra exposure here. A rental property with a non-compliant shutter can affect insurance claims after an incident. It can also breach tenancy safety obligations.
Can You Retrofit Safety Sensors to an Older Roller Shutter?
Yes. Most older motorised shutters can be retrofitted rather than replaced. A licensed technician assesses the existing motor and mechanism first. They then fit compatible sensors and test the system against the standard. Retrofitting costs far less than full replacement. It also brings an ageing shutter up to current compliance without losing the existing curtain and tracks.
Do Manual Roller Shutters Need Safety Features Too?
Manual shutters face lighter requirements than electric ones. They don’t need motor sensors, since there’s no motor to limit. But if the shutter uses a pull cord or chain, it must meet cord safety rules. These rules require tensioning devices or cleats that keep cords out of children’s reach. They also require clear warning labels about strangulation risk.
What Other Accessories Support Compliance and Safety?
Beyond sensors, several roller shutter accessories support full compliance. Manual override mechanisms let you operate the shutter safely during a power outage. Childproof cord cleats keep loose cords secured and out of reach. Clear labelling and a compliance certificate confirm the installation meets the required standard. These accessories aren’t optional add-ons. They form part of a legally compliant system. We’ve fitted this full accessory range on installs across Adelaide, including several recent roller shutter projects in Henley Beach residents commissioned for coastal properties.
Who Is Responsible for Roller Shutter Compliance in SA – Owner or Installer?
Responsibility depends on the situation. For a new installation, the licensed installer certifies compliance at handover. For an existing shutter, the property owner is responsible for its ongoing maintenance and upgrades as needed. For rental properties, the landlord holds this responsibility, not the tenant. Builders specifying shutters for new developments should confirm compliance documentation before practical completion, not after.
What Should You Do Next to Ensure Your Roller Shutters Are Compliant?
Compliance isn’t optional when it comes to safety sensors for roller shutters in South Australia. Every electric shutter needs obstacle detection and force-limiting sensors that meet AS/NZS 60335.2.103. Every installation needs a licensed electrician’s sign-off. And every property owner, whether homeowner, landlord, or builder, carries responsibility for keeping that shutter compliant over time.
If your shutters predate these requirements, retrofitting is usually straightforward and far cheaper than replacement. At iDeal Roller Shutters, we install and retrofit safety sensors across Adelaide homes, rental properties, and commercial sites, and we handle the compliance certification so you don’t have to chase it down yourself.
Not sure if your current shutters meet the standard? Get in touch with our team for a compliance check or a quote on retrofitting safety sensors, contact us today.
